RUBINA RB-9400C-D4 PREMIUM straight-stitch industrial machine with automation

RUBINA RB-9400C-D4 straight-stitch industrial machine with automation (comes with a table Made in Germany)

Rubina RB-9400C is a straight-stitch shuttle machine with automation. The machine has a built-in DC motor directly connected to the main shaft (no belt).

Due to its quiet operation, it is suitable for home use.

The machine has the following automatic functions:

• Extremely quiet thread trimming, controlled by a stepper motor. This system produces a very short thread end – up to 3 mm.
• Extremely quiet stitch locking at the beginning and end of the seam, which can also be programmed to perform single, double, quadruple stitches. The performance is controlled by a stepper motor.
• Needle positioning – the needle will always stop at the bottom or top.
• Extremely quiet presser foot lifting, controlled by a stepper motor.
• Programmable decorative stitches.
• 4 easily accessible buttons that allow easy stitch locking and shorter individual stitches.
• Electronic stitch length control.
• The machine uses a closed lubrication system, there is no open oil reservoir. This helps better protect your product from oil drops.

Technical characteristics:

• 9 programmable decorative stitches
• Automatic thread trimming using a stepper motor
• Automatic presser foot lifting using a stepper motor
• Automatic stitch locking using a stepper motor
• Built-in DC motor 550W
• Stitch length up to 6 mm
• LED needle lighting
• Automatic needle positioning
• Closed lubrication system
• Maximum sewing speed 5000 stitches/min.
• Minimum sewing speed 100 stitches/min.
• Table dimensions 106 x 50 cm

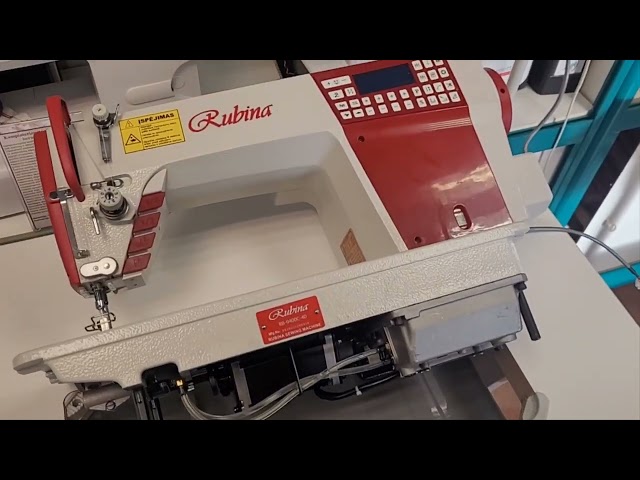

Control panel description:

1. Stitch length setting (also used to select decorative stitches after button 4 is pressed)
2. Single stitch locking with adjustable density (from 1 to 9 dense stitches)
3. Weak locking in place (without reverse)
4. Activation of decorative stitch function, stitches are changed by pressing button 1 (+ and -)
5. Template selection (pockets, labels)
6. Speed increase
7. Speed decrease
8. Parameter increase/decrease
9. Functional parameter change (for mechanics only)
10. Confirmation button (for mechanics only)
11. Stitch locking at the beginning of the seam (by pressing the button several times, you can choose single or double locking)
12. Stitch locking at the end of the seam (by pressing the button several times, you can choose single or double locking)
13. Needle position change in the middle of the seam
14. Automatic presser foot lifting (each time it stops)
15. Simple sewing
16. Only stitch locking (with the S button you can choose how many times the machine will move forward/backward performing one locking)
17. Slow start function
18. Pedal presser foot lifting function activation/deactivation
19. Template sewing (labels), the number of template stitches is set with the +- buttons and the S button.
20. Maintaining constant speed during template sewing
21. Thread trimming function
22. Needle position (always stops at the top or bottom)
